BALLISTICS
BALLISTICS SB STOOL KIT / バリスティック スケートボード スツールキット
本体価格
14,850 yen(税込)
ID: R000000000296 SOLD OUT
Black
SIZE SELECT
―
SOLD OUT

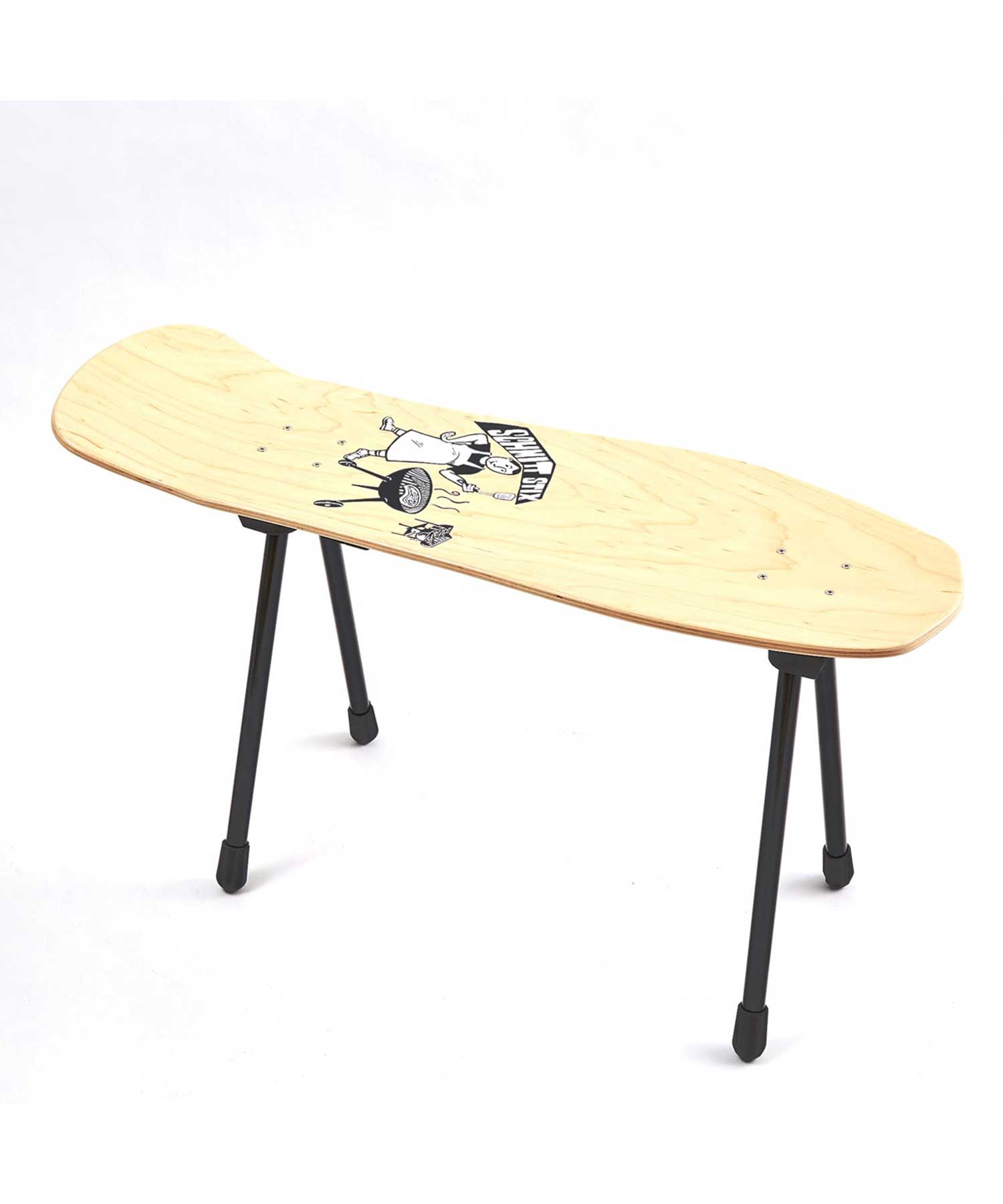

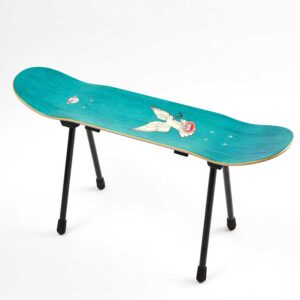

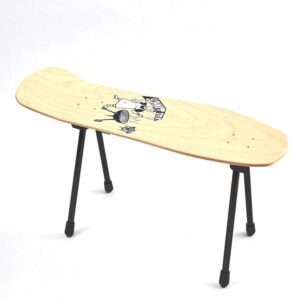

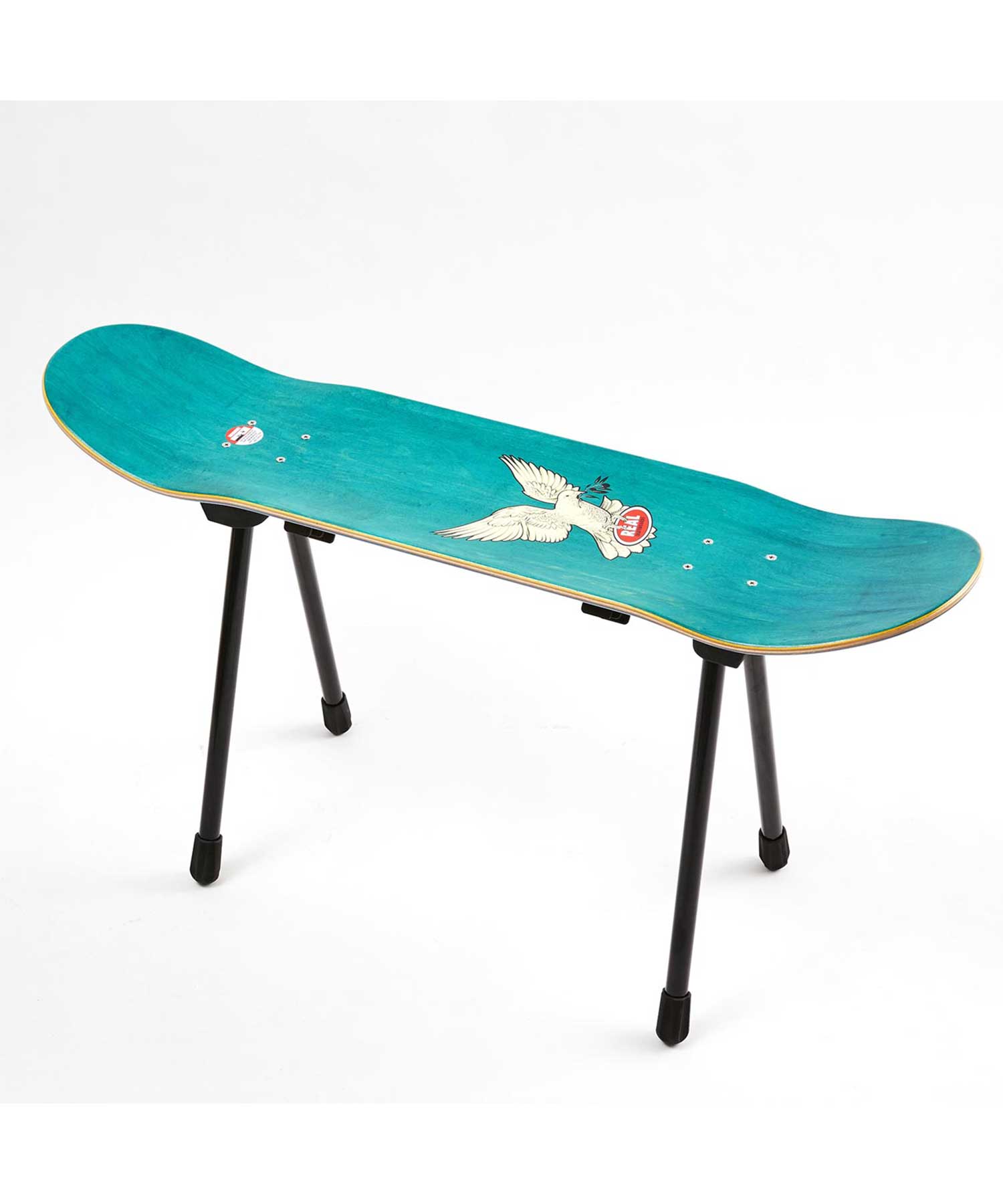

スケートボードデッキに空いている規定ピッチの4つ穴(2箇所)にトラックを付ける代わりにこの部材を付ける事でスケートボードをスツールに出来るパーツです。

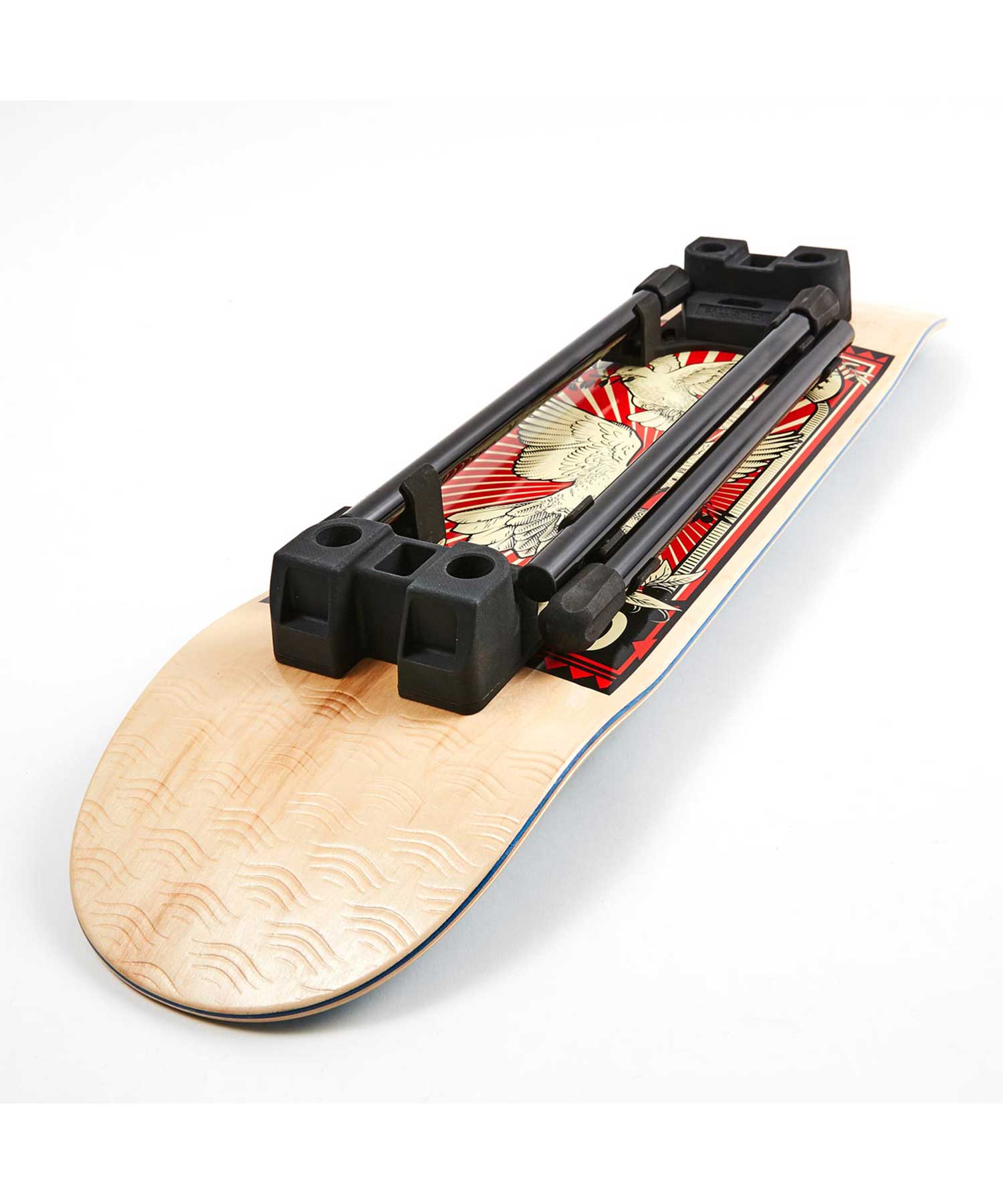

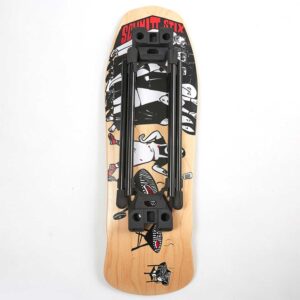

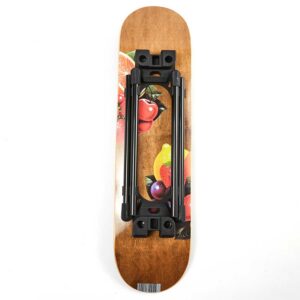

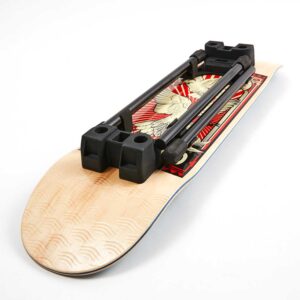

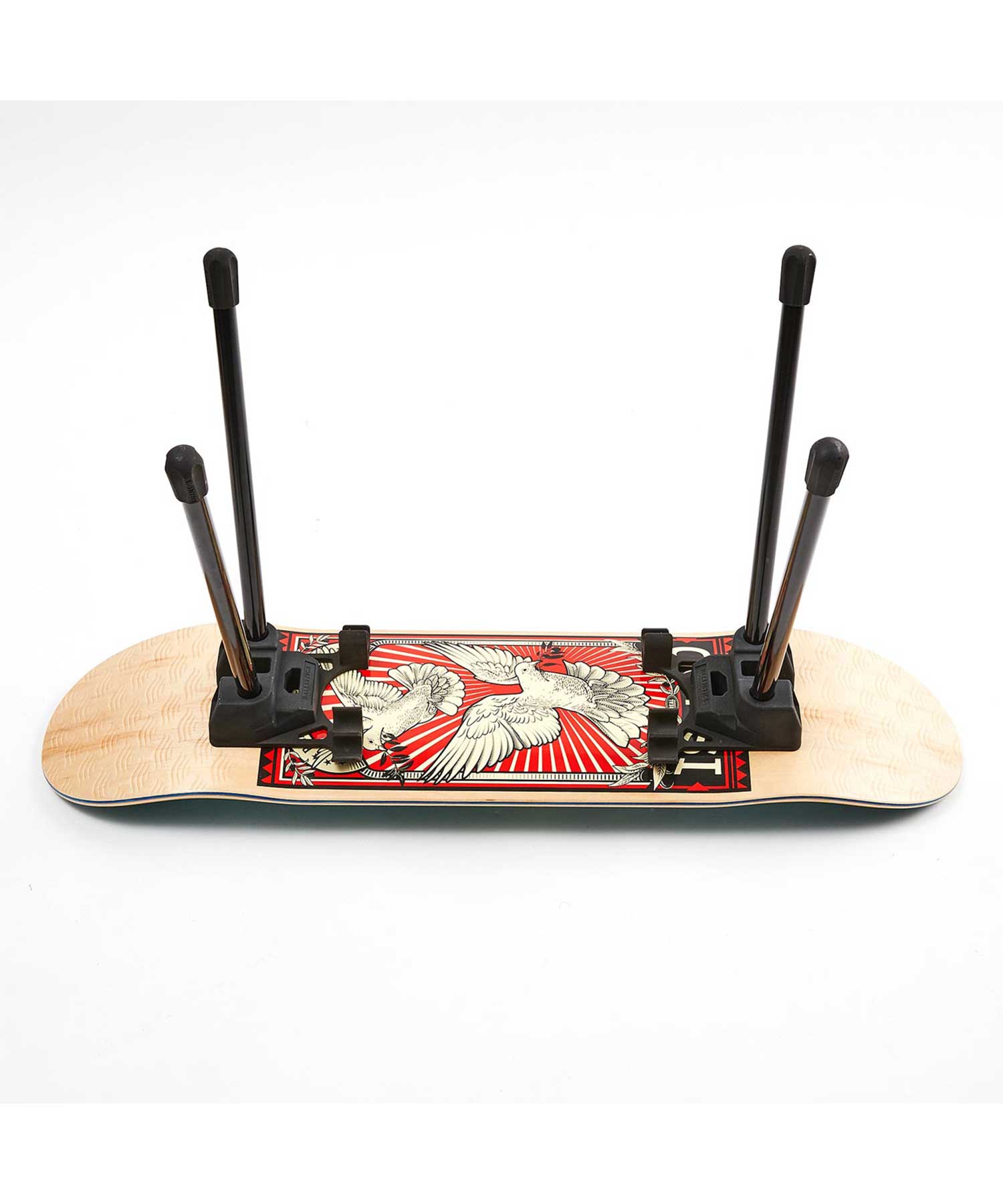

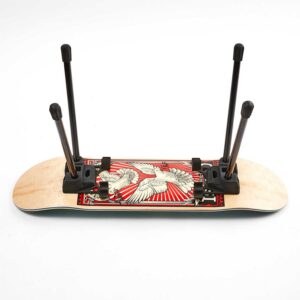

当製品最大の特徴は、よくある固定脚ではなく4本の脚をマグネットで脱着し、外した脚をボード裏のホルダーに保持した状態でコンパクトに持ち運び出来る点です。
それにより屋内に限らずアウトドアでもご利用いただけますので用途がかなり広がります。
一例として、キャンプや野外活動でのイスやテーブルとしてはもちろん、来客時の追加チェア、店舗什器、ディスプレイ台、TVラック、お子様でしたら2人掛け のベンチとしてもお勧めです。
スケートボードが天板ということは脚を広げて 安定して踏ん張れる形状ということになります。
当製品は上に立っても問題のない強度がありますので、高いところの物を取る際や車のルーフラックの 荷上げ荷降ろしの際の脚立(踏み台)代わりにもなり、奥行きがあまり無い事からかなり車両に 寄せて使用できます。
又、荷室に置いてある様もスマートです。 (注:天板の上でジャンプしたり無理に揺らしたりはしないで下さい。)
脚をたたんだ(脚を裏面に収納した)状態でも接地面はフラットな為、 超ローテーブルとしてもご使用いただけます。
脚の開脚幅に納まる8インチ (約20cm)以下のボードでしたら1段目を床置きして2段ラックとしてもご使用いただけます。
仕舞い寸が薄いのでちょっとした隙間に収納でき、平積みすれば多数所有されても積み重ねればデッキの幅以上の場所を取りません。
スケートボード は幅(奥行き)があまり無いので狭いお部屋でも壁面にくっ付けて置けば床 面積をあまり狭めずに設置可能です。
コレクション目的としてや、乗るにはもったいなくて仕舞っているお気に入りのデッキに実用品として日の目を当てられます。
前提としてスケートボード(デッキ)はお客様サイドでお好みの ものをご用意下さい。
パーツの穴位置はOLDピッチにも対応しておりますので80年代頃のOLDデッキにも使用できます。
今回、設計と強度計算は” H&O ”さん、製作は”OWL CRAFT” さんにご協力いただき、我ながら満足のいく強度や仕上がりとなりました。
約3年前から構想しておりましたが「樹脂成型品」は金型製作等資金的にハードルが高くなかなか実現出来ずにおりましたが、今回ようやく製作資金の確保が出来た為ついに製品化となった念願の一品になります。
製品内容
・本体ブロック(マグネット入り)× 2個
・レッグホルダープレート × 2枚
・レッグパイプ(マグネット入り)× 4本
・専用皿ネジ × 10本(予備2本を含む)
※スケートボードデッキ(板)は含まれませんので、別途ご用意願います。
MATERIAL
・樹脂成型パーツ / ガラス繊維入ナイロン樹脂
・脚パイプ / ジュラルミン製 BLACK電着塗装
・付属皿ネジ / スチール製 BLACK電着塗装
(※ネジも専用設計になります。)
・マグネット / ネオジム磁石
SIZE(縦横厚)
座面高 約40cm (デッキ厚10mmとして)
収納時のパーツ部分の厚み 45mm
◆ 板厚11mm以下、ホイルベース(内側の穴~穴)350mm~400mmの ボードに対応。それ以上の場合は「ポールホルダー」を使わなければご使用いただけます。(その場合、脚パーツ4本は別に携帯して下さい。)
◆OLDデッキ等、ノーズが短くテールのみ長いデッキは脚の位置がかなり オフセットされます。着席の際は着座位置にご注意下さい。又、コンケーブ (板の反り具合)位置によってきちんと接合出来ないデッキもありますので ご注意下さい。(その場合無理に接合やご使用されることはお止め下さい。)
◆脚パイプと差し込みの間には元々若干のガタつき(隙間)がありますが 構造上必要なクリアランスになりますのでご了承下さい。
◆専用皿ネジで表面からの締め込みのみでの接合になりますので皿ネジ の埋まり具合が浅い場合は無理に締めこまず、事前にデッキの穴を皿ネジ の角度(90度)で少し座彫りすると(ざぐると)ネジ頭がフラットに埋まります。 (無理にネジを回すとプラスのネジ頭をなめたりパーツやデッキが破損する 恐れがありますのでご注意下さい。)
※ 座彫り用のビットはこの様なものになります → https://www.amazon.co.jp/gp/product/B001WHEM54/ref=ppx_yo_dt_b_asin_title_o02__o00_s01?ie=UTF8&psc=1
( 検索ワード : スターエム ハイス六角軸面取カッター NO.5007 8MM )
◆組み立て時の脚の刺さり具合や設置面の凹凸状況、脚立としてご使用の 際は車両や壁との距離に十分ご注意下さい。
◆強力な磁石を内蔵した製品になりますので、磁気による不具合が起きうる物は周囲に近づけないで下さい。(例:カード類、精密機器、記録媒体、PC関連製品、時計等)
◆「脚先の樹脂キャップ(地面に接地する側)」は接着等ではなく単なる圧入による接合になりますので、手回しするとスポッと抜けてしまう個体がございますが仕様とご理解下さい。(※抜けてしまった場合は再度奥まで挿し込んでご使用下さい。)
◆「レッグパイプ根元のキャップ」は経年や季節(気温)や湿度等の変化によりパイプとの嵌合がゆるくなりパイプから抜けてしまう事がございます。抜けて差し込みブロック内にパーツが残ってしまった場合は、ラジオペンチなどの先端の細い工具でつまんで取り出していただき、抜けてしまったキャップ側面に接着剤等を塗布いただくか、セロテープを1/3~1/2周程巻きつけて「隙間の調整」をしていただいた上で再度挿入してください。ナイロン樹脂製品の特性(高強度であるが経年や気温等による収縮膨張が大きい)となります為ご理解願います。
<EN>
This is a skateboard stool that can be attached to a skateboard deck instead of having to attach trucks to the four holes (two holes).
The main feature of this product is that the four legs are detachable with magnets and can be held in the holder on the back of the board for compact transportation.
This allows the board to be used not only indoors but also outdoors, making it very versatile.
For example, it can be used as a chair or table for camping or outdoor activities, an extra chair for guests, a shop fixture, a display stand, a TV rack or even a bench for two children.
The skateboard top means that you can spread your legs and stand on it steadily.
The skateboard is strong enough to stand on, so it can be used as a stepladder to reach high objects or to load and unload the roof rack of a car, and because it is not very deep, it can be used close to the car. It also looks smart in the cargo area. (Note: Do not jump on the top or rock it uncontrollably.)
The table can also be used as an ultra-low table, as it has a flat surface when the legs are folded down (they are stored on the back).
It can also be used as a two-tiered rack, with the first tier on the floor, if the board is smaller than 8″ (20cm) and fits within the width of the leg openings.
The racks are so thin that they can be stored in the smallest of spaces and can be stacked on top of each other to take up no more space than the width of the deck.
As skateboards are not very wide (or deep), they can be placed against a wall in a small room without taking up too much floor space.
It’s a great way to bring your favourite skateboards back into the spotlight, whether they’re for your collection or you’re just too lazy to ride them.
The skateboards (decks) must be of your own choice.
The holes are also designed to fit OLD decks, so they can be used on OLD decks from the 80’s.

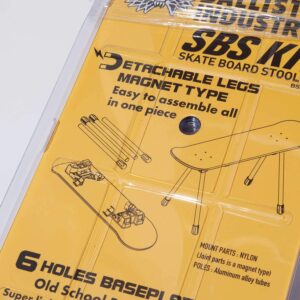

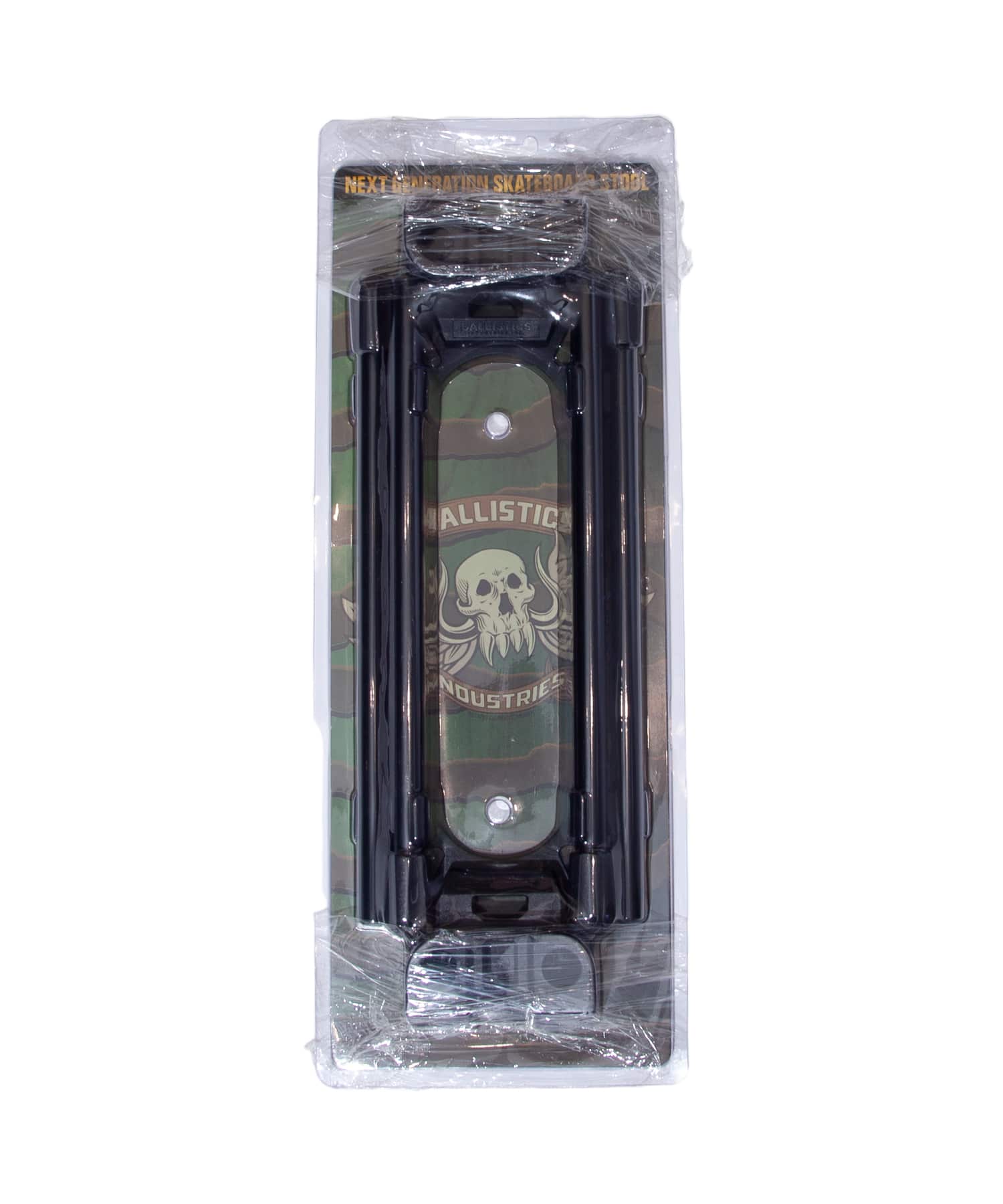

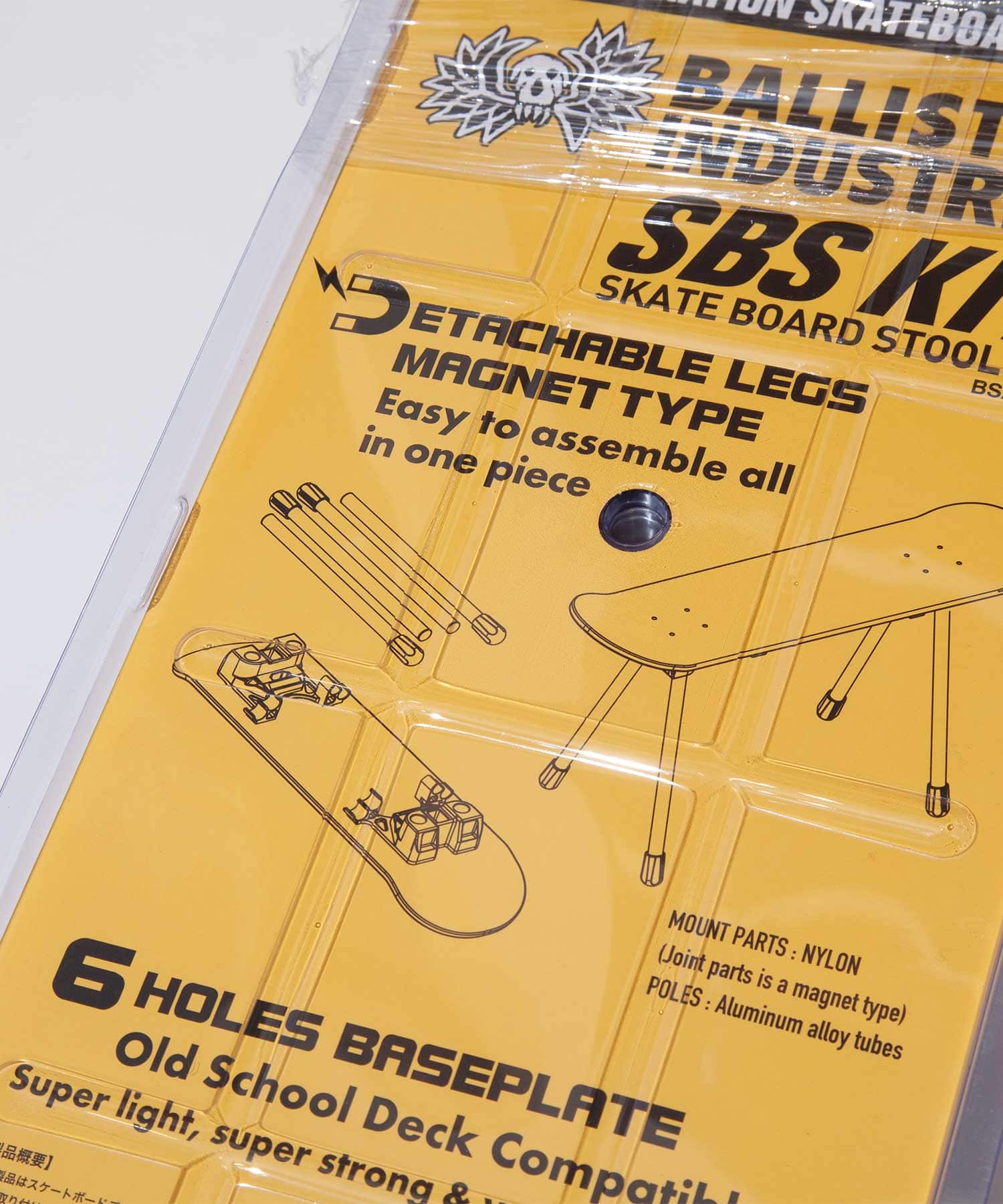

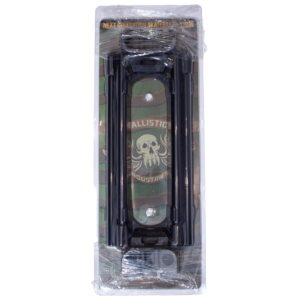

The decks are delivered in a transparent blister pack so that they can be easily displayed on the wall.
The design and strength calculations were done by “H&O” and the production was done by “OWL CRAFT”, and we are very happy with the result.
We had been planning this product for about 3 years, but it was difficult to make it because of the financial hurdle of making a mold for “resin molding product”.
Product contents
Body block (with magnet) x 2
Leg holder plate x 2 pcs
Leg pipe (with magnet) x 4 pcs.
10 countersunk screws (including 2 spare screws)
Skateboard deck (board) is not included.
MATERIAL
Resin molded parts / Nylon resin with glass fiber
Leg pipe / Duralumin BLACK electrodeposition coating
Countersunk screws / Steel, Black electro-deposition coating
(*Screws are also specially designed for this product)
Magnet / Neodymium magnet
SIZE (length, width and thickness)
Seat height approx. 40cm (assuming 10mm deck thickness)
Thickness of the parts when stored 45mm
For boards less than 11mm thick and with a wheelbase of 350mm to 400mm (inside hole to hole). For boards with a thickness of 11mm or less and a foil base (inner hole to hole) of 350mm to 400mm, without the “pole holder”. (In this case, please carry the 4 leg parts separately).
If the deck is short in the nose and long in the tail, the legs will be offset considerably. Please pay attention to the seating position when seated. Please note that some decks may not be able to be joined properly due to the position of the concave (warp of the board). (Please note that some decks cannot be joined properly due to the position of the concave.)
Please note that there is a slight gap between the footpegs and the inserts, which is necessary for structural reasons.
If the countersunk screws are too shallow, please do not over-tighten them, but instead carve the holes in the deck at a 90° angle to ensure that the screw heads are flat. (Please note that forcing the screw may damage the head of the Phillips screw or the part or deck.)
The bit for carving is like this one: https://www.amazon.co.jp/gp/product/B001WHEM54/ref=ppx_yo_dt_b_asin_title_o02__o00_s01?ie=UTF8&psc=1
( Search word : Star-M HSS Hexagonal Chamfering Cutter NO.5007 8MM )
Please pay attention to the distance between the legs and the uneven surface when assembling the product and when using it as a stepladder.
Please keep the product away from any objects that may cause magnetic interference. (Please keep the product away from objects that may cause magnetic interference (e.g. cards, precision instruments, recording media, PC-related products, watches, etc.).
Please note that the plastic cap on the end of the leg is not glued, but simply press-fit into place, so it may come loose when turned by hand. (If it does, please insert it again to the back.)
The cap at the base of the leg pipe may become loose due to age, temperature, humidity, etc. and may come loose from the pipe. If it comes loose and remains in the block, please pinch it out with a thin tool such as radio pliers and apply adhesive to the side of the cap or wrap a piece of cellophane tape around it to adjust the gap and insert it again. Please reinsert the cap. Please understand that this is a characteristic of nylon resin products (high strength but subject to shrinkage and expansion over time and temperature).
